S5 BATTERY MONITORING SYSTEM

BTECH’s flagship product is designed for various battery monitoring applications and can support up to 480 individual cells and eight strings per system. The S5 is the benchmark in design, application, and function for modern battery management systems.

MADE TO MEASURE:

logo

CELL IMPEDANCE

Compare internal unit impedance to baseline values to identify failing units with +/-0.01mΩ accuracy.

logo

STRING CURRENT

Monitor string currents and record system, string currents during discharge events.

logo

TEMPERATURE

Read unit, ambient, and differential temperature values with +/-1.0°F accuracy.

logo

DISCHARGE EVENTS

Record date and time, system voltage, load current, power removed, and unit voltage decay.

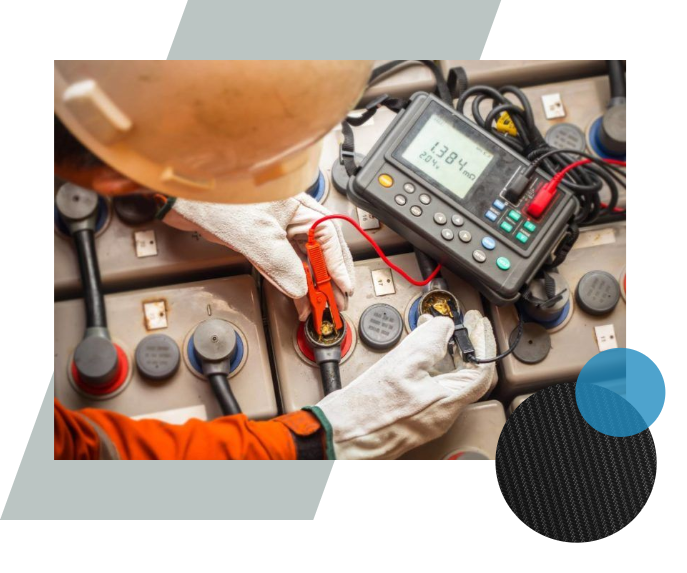

INTELLIGENT MAINTENANCE

Bypass time-consuming and expensive on-site maintenance with a system that provides advanced notification of potential failures via real-time monitoring and data collection. Make prompt evaluations and analyses, enable remote analysis and troubleshooting, and ensure your batteries are reliable 24/7/365.

img img

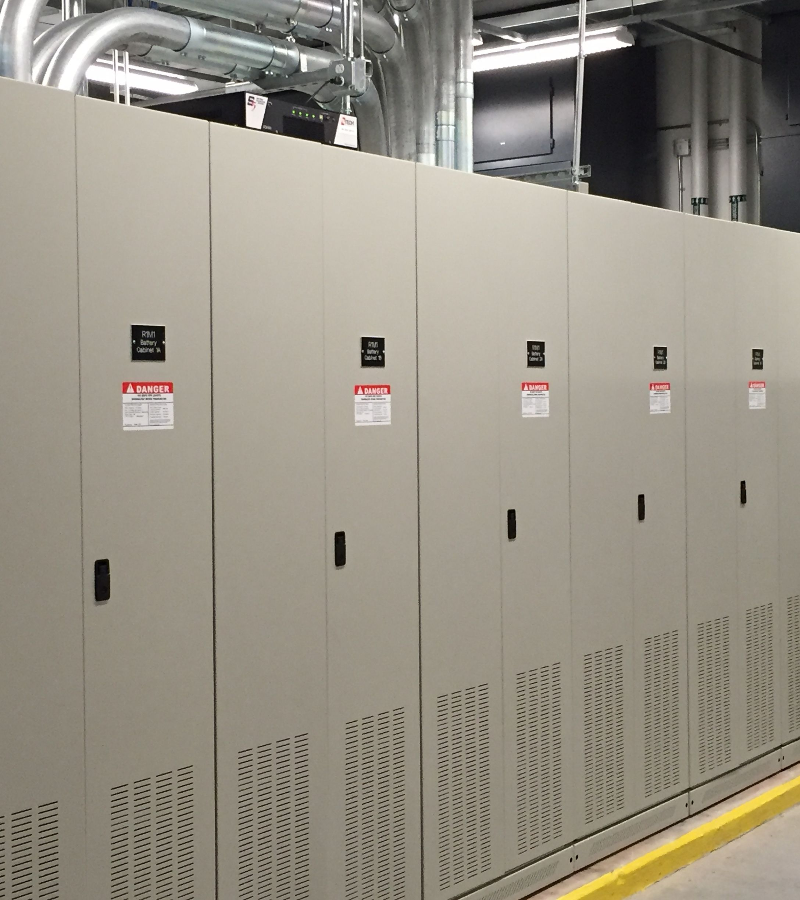

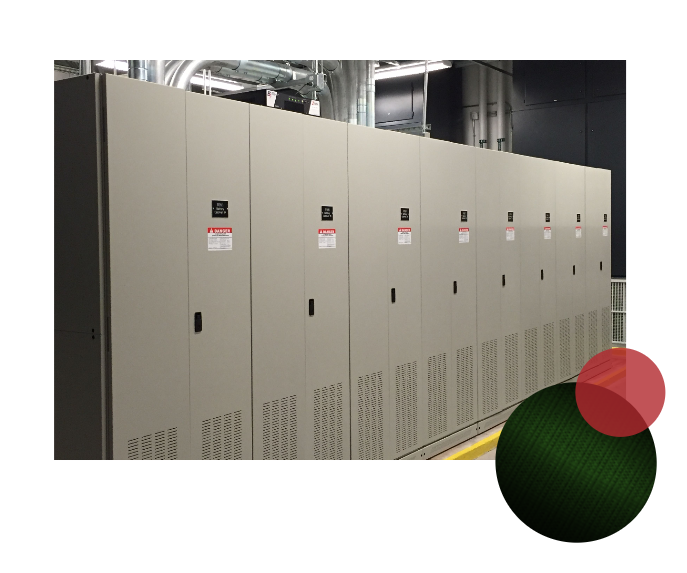

DIVERSE APPLICATIONS

Collect data from all battery types, including cells with high Amp-Hour ratings (4000+), for data center UPS and large-scale critical backup power systems. We custom configure battery systems for each application and project with specific hardware design and the correct wiring set.

img img

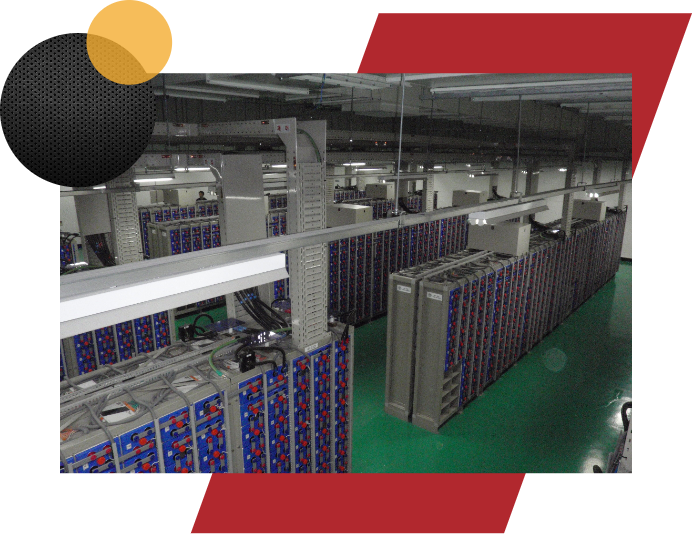

OPERATOR SAFETY

Simplify the battery replacement process while protecting personnel during installation, inspection, and maintenance with our quick-disconnect safety fuses that prevent damage to electrical circuits due to an unintentional short circuit.

img img

APPLICATIONS

We help companies deploying reserve power or battery systems eliminate the risk of failure.

VLA AND VLRA BATTERIES

TELECOMMUNICATION SYSTEMS

ELECTRIC UTILITY SWITCHGEAR

UPS SYSTEMS

LET’S GET TECHNICAL

Learn the ins and outs of the S5 and see if it’s appropriate for your mission-critical application.

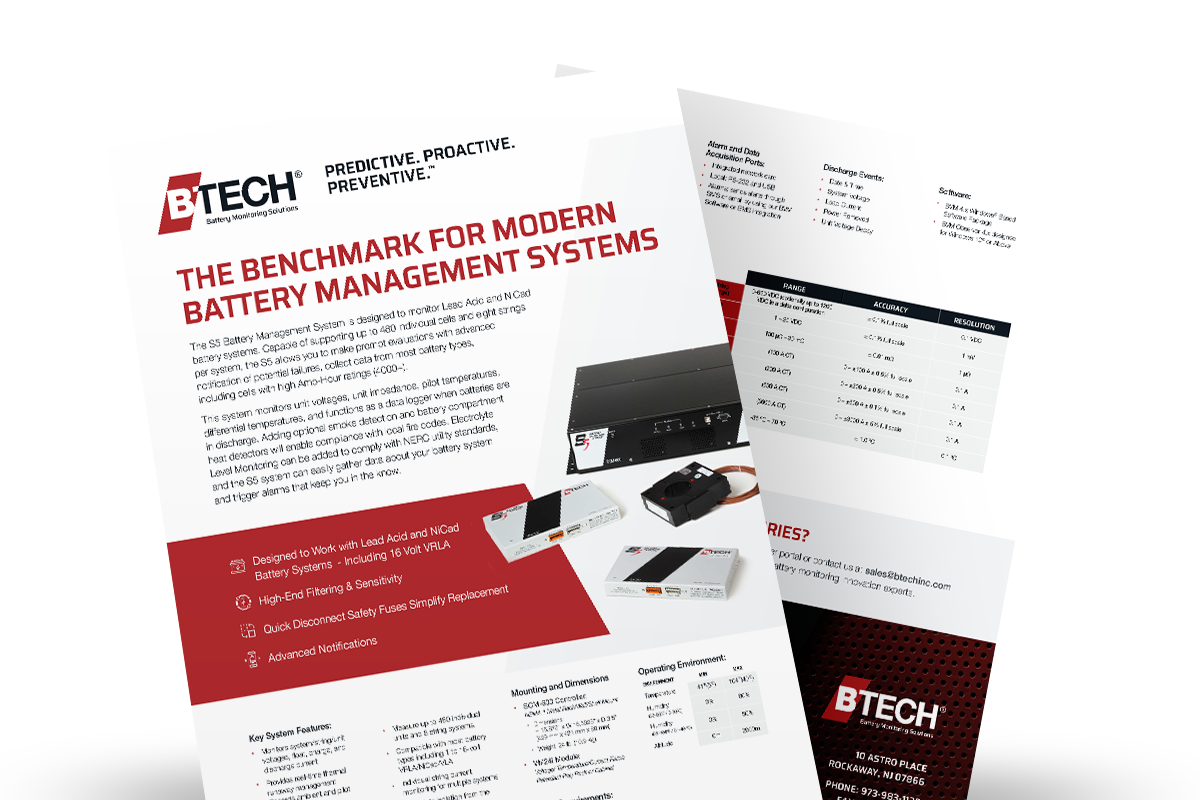

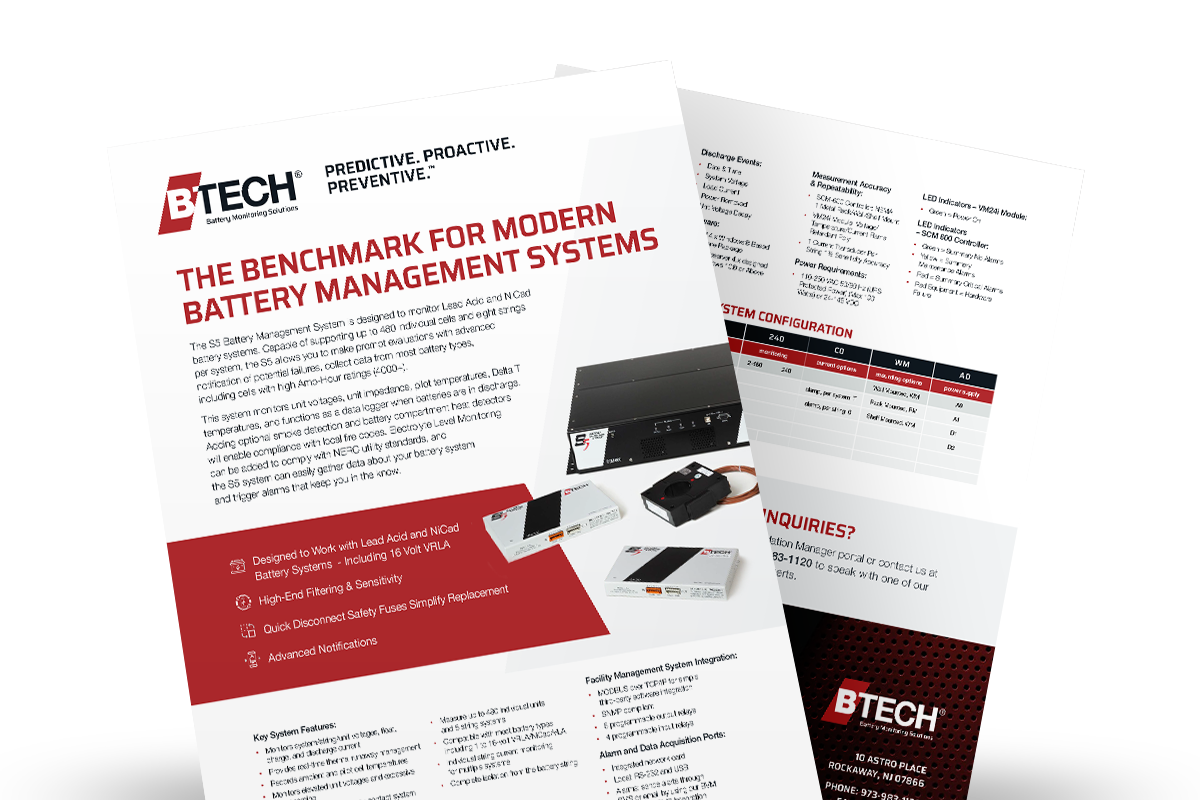

SPECIFICATIONS
