BATTERY GROUND MONITOR (BGM-500)

A specialized solution designed to detect ground faults in DC battery systems. The BGM-500 is a standalone product that doesn’t require custom software or programming to be integrated into Data Center Infrastructure Management (DCIM) or an existing building management system.

MADE TO MEASURE:

logo

PRECISE FILTERING

Suppresses ground noise including electromagnetic interference (EMI) in UPS applications using a configurable digital filter.

logo

CURRENT TRANSDUCER LINEARITY

Observe the response curve over the operating range at ±500 mA DC

logo

CURRENT TRANSDUCER SENSITIVITY

Battery Ground Current Accuracy: ±1.0% F.S. Accurately measures leakage up to 500 mA from the battery cabinet or rack to ground.

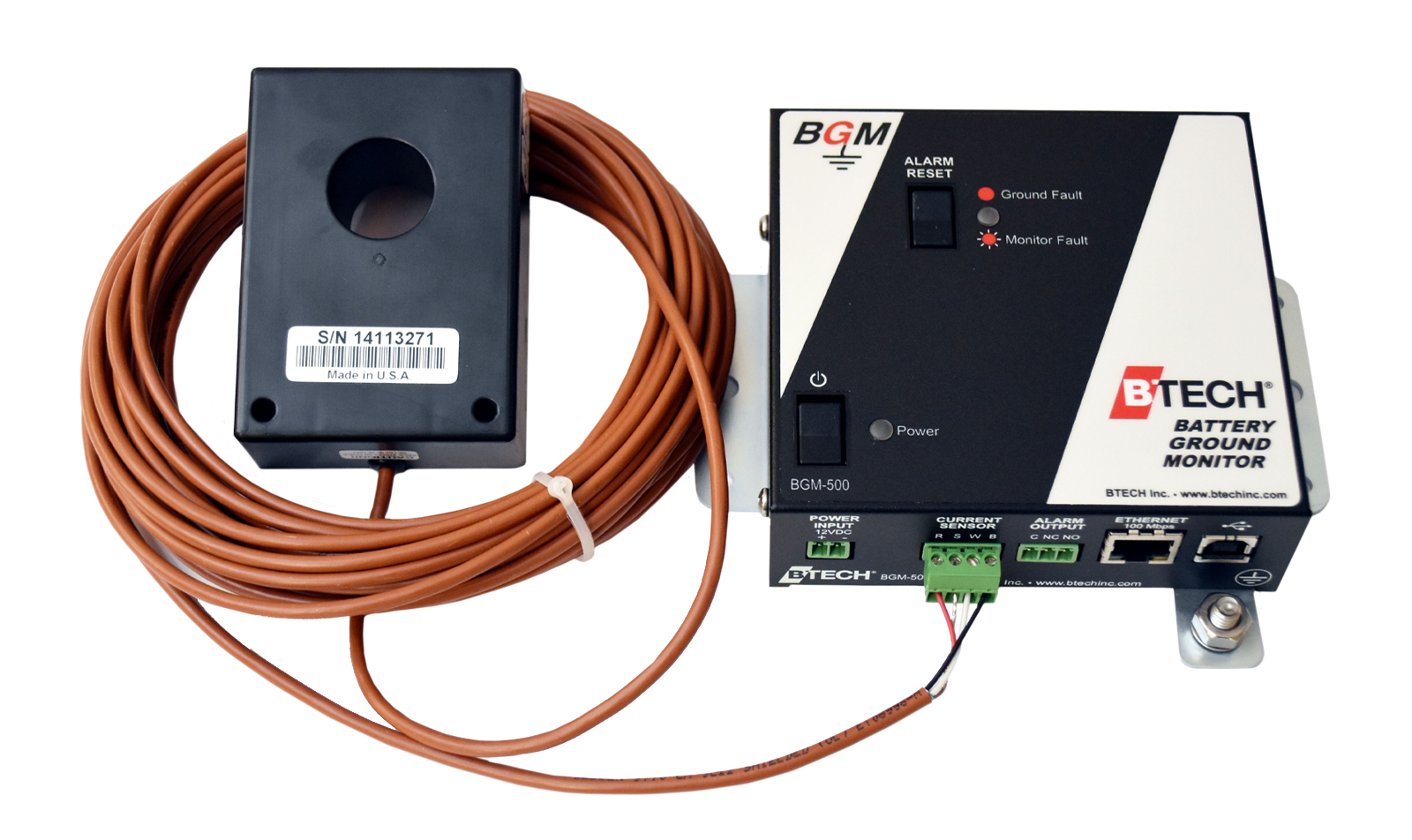

CUSTOM CURRENT TRANSDUCER

Over time, batteries can corrode and leak. If the leaking electrolyte makes contact with the metal cabinet or rack, it can short the battery to the cabinet or rack. The BGM-500 measures current that flows from the battery to earth ground. When the system spots a current above the configurable threshold value, it sends notifications about battery ground failures via SNMP, Modbus, an internal web server, on-board LED and alarm contacts.

img img

OPERATOR SAFETY

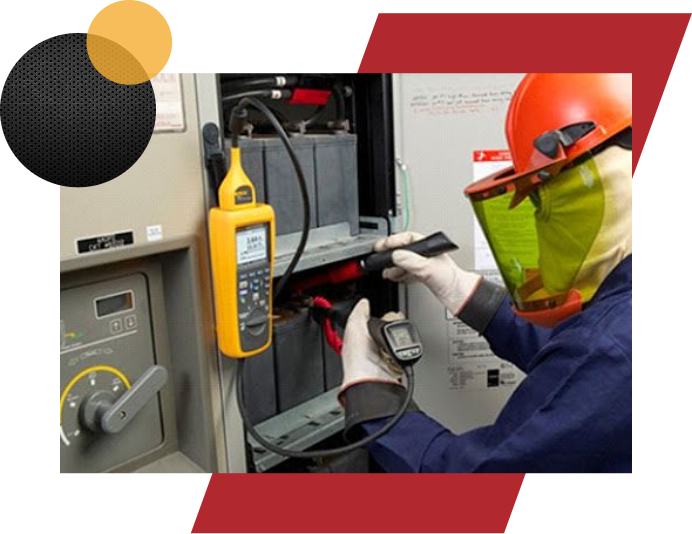

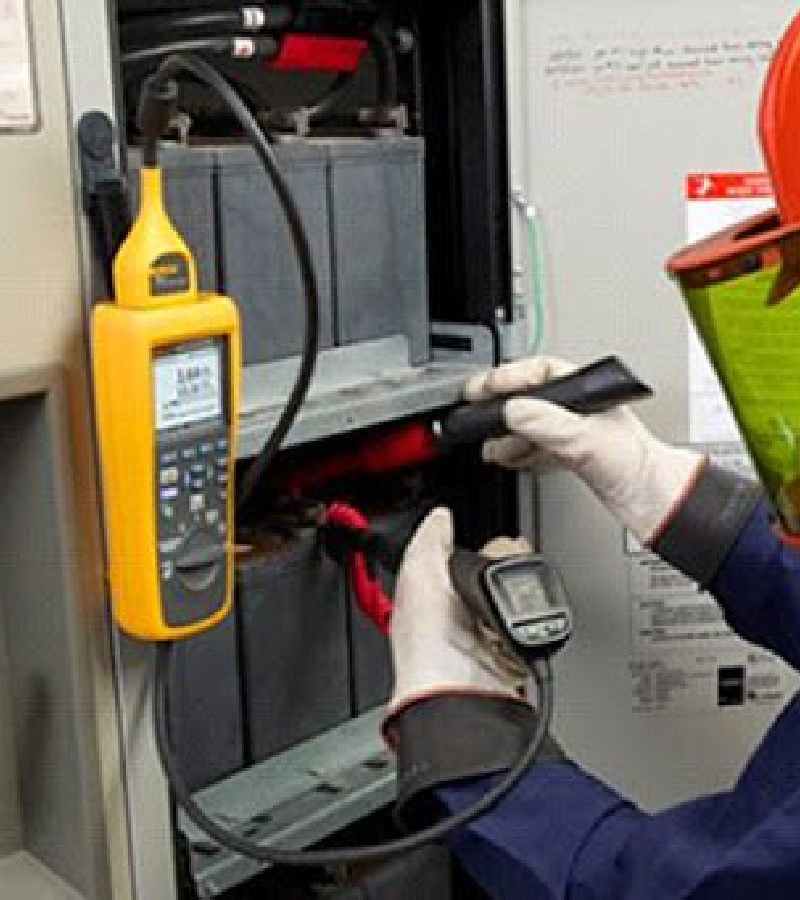

Protect your team members, battery room, and ensure battery room safety. Shorted cells will overheat and potentially go into “Thermal Runaway”. Unintended ground faults and short-circuiting can expose field service personnel to electric shock, dangerous thermal conditions, and fire.

img img

APPLICATIONS

We help companies deploying reserve power or battery systems eliminate the risk of failure.

CABINETS OR RACKS

NiCad BATTERIES

VLA AND VLRA BATTERIES

LET’S GET TECHNICAL

Learn the ins and outs of the BGM-500 and see if it’s appropriate for your mission-critical application.

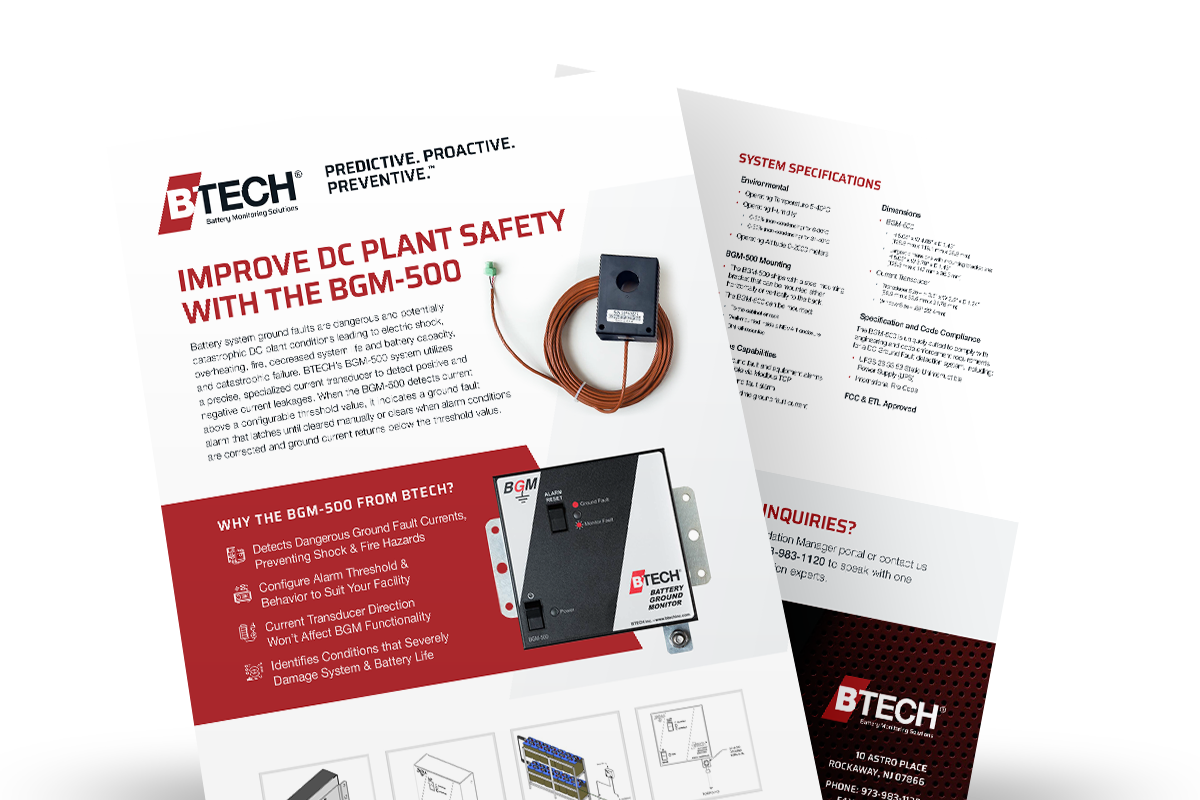

SPECIFICATIONS
